Clamp with Combi Nut
Clamps with combi nut are used for mounting pipes horizontally or vertically on walls, as well as on ceilings and floors. The M8 / M10 combi hanger nut is welded on. Phillips-head combi connecting bolts provide a safe and easy connection. The insulating rubber dampens vibration and provides a sound reduction of up to 15 dB according to DIN 4109. Supplied wholesale in sizes from 3/8" to 6".
- Welded M8 / M10 combi hanger nut
- Easy mounting with Phillips-head combi connecting bolts
- Up to 15 dB sound reduction according to DIN 4109 with insulating rubber
- Corrosion resistance with 8–10 micron zinc coating
Product Information
| Coating | 8–10 micron zinc coating |
|---|---|
| Gasket Material | Insulating rubber |
| Sound Reduction | Up to 15 dB according to DIN 4109 |
| Hanger Nut (P) | M8 / M10 — welded combi hanger nut |
| Connecting Bolt | Phillips-head combi connecting bolt |
| Mounting | Horizontally or vertically on walls, on ceilings and floors |
| Size Range | 3/8" – 6" — 15 sizes |
| Sheet Thickness (A) | 1.0 / 1.2 / 1.5 / 2.0 mm (depending on size) |
| Band Width (G) | 20 / 25 mm |

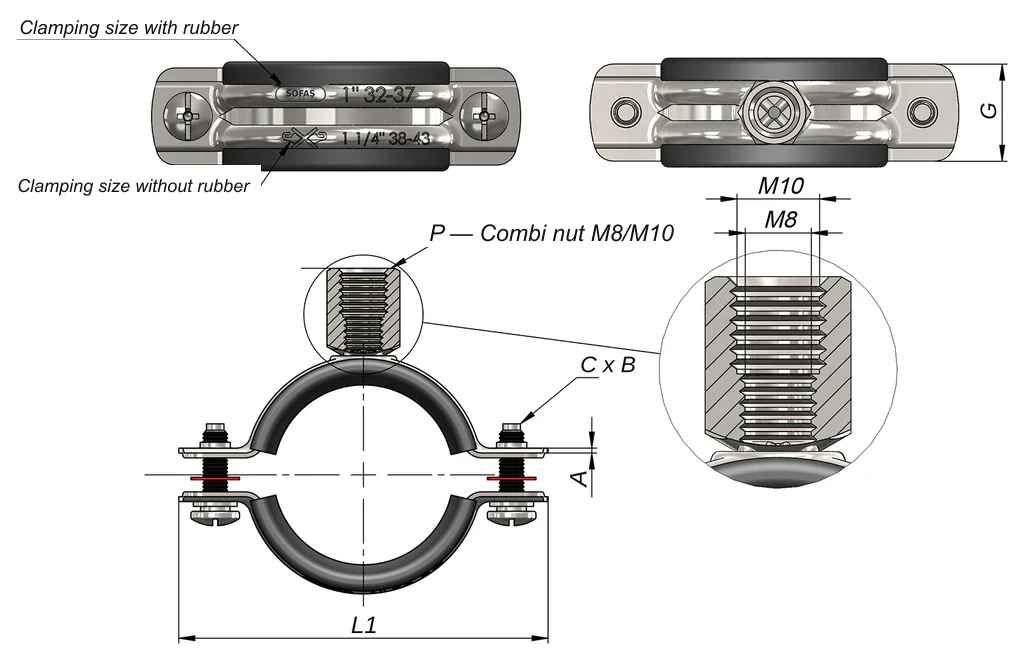

Dimension References
P: combi hanger nut · C x B: connecting bolt (diameter x length) · A: sheet thickness · G: band width · L1: total length — the same letters as the columns in the size table.
Available Sizes
Clamping range and other dimensions are in millimetres. Scroll the table sideways to see all columns.
| Product Code | Clamping Range | Inch" | C | B | P | A | G | L1 | Qty per Box | Box kg |
|---|---|---|---|---|---|---|---|---|---|---|
| — | 14-18 | 3/8 | 5 | 15 | 8x10 | 1.0 | 20 | 58.5 | 350 | — |
| — | 20-23 | 1/2 | 5 | 15 | 8x10 | 1.0 | 20 | 60.5 | 350 | — |
| — | 25-28 | 3/4 | 5 | 15 | 8x10 | 1.0 | 20 | 77 | 250 | — |
| — | 32-35 | 1 | 5 | 15 | 8x10 | 1.0 | 20 | 77 | 250 | — |
| — | 40-45 | 1 1/4 | 5 | 15 | 8x10 | 1.2 | 20 | 83.5 | 150 | — |
| — | 48-52 | 1 1/2 | 5 | 15 | 8x10 | 1.2 | 20 | 91 | 150 | — |
| — | 56-60 | 2 | 5 | 15 | 8x10 | 1.2 | 20 | 103 | 100 | — |
| — | 75-80 | 2 1/2 | 6 | 30 | 8x10 | 1.5 | 25 | 125 | 125 | — |
| — | 86-91 | 3 | 6 | 30 | 8x10 | 1.5 | 25 | 153 | 80 | — |
| — | 97-101 | 3 1/2 | 6 | 30 | 8x10 | 1.5 | 25 | 158 | 80 | — |
| — | 100-115 | 4 | 6 | 30 | 8x10 | 1.5 | 25 | 163 | 80 | — |
| — | 123-126 | 4 1/2 | 6 | 30 | 8x10 | 1.5 | 25 | 183 | 60 | — |
| — | 138-142 | 5 | 6 | 30 | 8x10 | 1.5 | 25 | 202 | 50 | — |
| — | 150-165 | 5 1/2 | 6 | 30 | 8x10 | 1.5 | 25 | 210 | 50 | — |
| — | 163-167 | 6 | 6 | 30 | 8x10 | 2.0 | 25 | 243 | 40 | — |
Where is it used?
Natural Gas Installations
Fixing indoor and outdoor natural gas pipelines to walls.
Plumbing
Quiet and secure mounting on clean water and wastewater lines.
Heating & Boiler Lines
Accommodates thermal expansion in radiator and combi boiler connections.
Industrial Facilities
Suitable for intensive use on factory and industrial lines.
Get a wholesale price quote for clamps with combi nut
Send us the sizes and quantities you need, and our team will get back to you shortly with pricing and delivery information.
