Standard Clamp with Wood Screw
Standard clamps with wood screw are used for fixing pipes by mounting them to walls, ceilings or floors. M10 plastic wall plugs must be used for installation. The insulating rubber dampens vibration in the system and provides a sound reduction of up to 15 dB. Supplied wholesale in 15 sizes from 3/8" to 6".
- Quick single-point mounting with a 7x70 mm wood screw
- Up to 15 dB sound reduction with insulating rubber
- Corrosion resistance with 8–10 micron zinc coating
- Special rubber meeting DIN 53509 requirements
Product Information
| Coating | 8–10 micron zinc coating |
|---|---|
| Gasket Material | Insulating rubber |
| Rubber Resistance | Meets DIN 53509 requirements |
| Sound Reduction | Up to 15 dB |
| Mounting | To wall, ceiling or floor with a wood screw |
| Wall Plug | M10 plastic wall plug must be used |
| Chemical Resistance | Resistant to water, glycols, acids and bases |
| Size Range | 3/8" – 6" — 15 sizes |
| Wood Screw (P) | 7 x 70 mm (all sizes) |
| Sheet Thickness (A) | 1.0 / 1.2 / 1.5 mm (depending on size) |
| Band Width (G) | 20 / 25 mm |

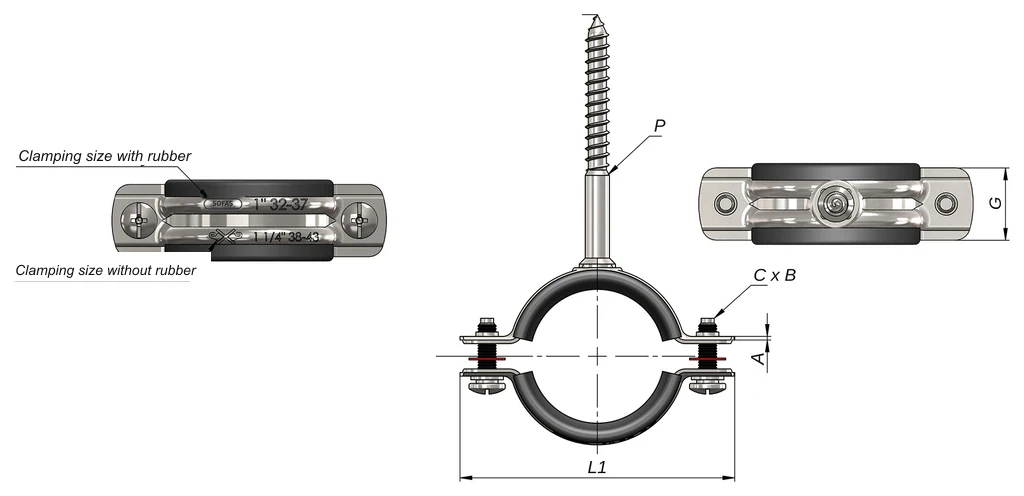

Dimension References
P: wood screw · C x B: connecting bolt (diameter x length) · A: sheet thickness · G: band width · L1: total length — the same letters as the columns in the size table.
Available Sizes
Clamping range and other dimensions are in millimetres. Scroll the table sideways to see all columns.
| Product Code | Clamping Range | Inch" | C | B | P (Wood Screw) | A | G | L1 | Qty per Box | Box kg |
|---|---|---|---|---|---|---|---|---|---|---|
| S-019 | 14-18 | 3/8 | 5 | 15 | 7x70 | 1.0 | 20 | 58.5 | 350 | — |
| S-020 | 20-23 | 1/2 | 5 | 15 | 7x70 | 1.0 | 20 | 60.5 | 300 | — |
| S-021 | 25-28 | 3/4 | 5 | 15 | 7x70 | 1.0 | 20 | 77 | 250 | — |
| S-022 | 32-35 | 1 | 5 | 15 | 7x70 | 1.0 | 20 | 77 | 200 | — |
| S-023 | 40-45 | 1 1/4 | 5 | 15 | 7x70 | 1.2 | 20 | 83.5 | 150 | — |
| S-024 | 48-52 | 1 1/2 | 5 | 15 | 7x70 | 1.2 | 20 | 91 | 100 | — |
| S-025 | 56-60 | 2 | 5 | 15 | 7x70 | 1.2 | 20 | 103 | 100 | — |
| S-026 | 75-80 | 2 1/2 | 6 | 30 | 7x70 | 1.5 | 25 | 125 | 80 | — |
| S-027 | 86-91 | 3 | 6 | 30 | 7x70 | 1.5 | 25 | 153 | 70 | — |
| S-028 | 97-101 | 3 1/2 | 6 | 30 | 7x70 | 1.5 | 25 | 158 | 50 | — |
| S-029 | 100-115 | 4 | 6 | 30 | 7x70 | 1.5 | 25 | 163 | 50 | — |
| S-030 | 123-126 | 4 1/2 | 6 | 30 | 7x70 | 1.5 | 25 | 183 | 50 | — |
| S-031 | 138-142 | 5 | 6 | 30 | 7x70 | 1.5 | 25 | 202 | 40 | — |
| S-032 | 150-165 | 5 1/2 | 6 | 30 | 7x70 | 1.5 | 25 | 210 | 35 | — |
| S-033 | 163-167 | 6 | 6 | 30 | 7x70 | 1.5 | 25 | 243 | 30 | — |
Where is it used?
Natural Gas Installations
Fixing indoor and outdoor natural gas pipelines to walls.
Plumbing
Quiet and secure mounting on clean water and wastewater lines.
Heating & Boiler Lines
Accommodates thermal expansion in radiator and combi boiler connections.
Industrial Facilities
Suitable for intensive use on factory and industrial lines.
Get a wholesale price quote for standard clamps with wood screw
Send us the sizes and quantities you need, and our team will get back to you shortly with pricing and delivery information.
