Heavy-Duty Clamp with Head

Heavy-duty clamps are used for fixing pipes by mounting them to walls, ceilings or floors, and are preferred in heavy (thick-walled) pipe installations. Fixing is done with a threaded rod and steel anchor. The head allows easy mounting, and the oval connection hole makes centring possible. The EPDM insulating rubber dampens vibration in the system and provides a sound reduction of up to 15 dB. Supplied wholesale in 13 sizes from 1/2" to 10".

Easy mounting thanks to the head, centring via the oval hole
Up to 15 dB sound reduction with EPDM insulating rubber
Corrosion resistance with 8–10 micron zinc coating
For heavy (thick-walled) pipe installations — 13 sizes

Get a Price Quote Call Us Now

TECHNICAL SPECIFICATIONS

Product Information

Coating	8–10 micron zinc coating
Gasket Material	EPDM insulating rubber
Rubber Resistance	Meets DIN 53509 requirements
Sound Reduction	Up to 15 dB
Head	With oval connection hole — easy mounting and centring
Mounting	To wall, ceiling or floor with threaded rod and steel anchor
Chemical Resistance	Resistant to water, glycols, acids and bases
Size Range	1/2" – 10" — 13 sizes
Connecting Bolt (C x B)	8 x 35 mm (all sizes)
Sheet Thickness (A)	2 mm
Band Width (G)	30 mm

TECHNICAL DRAWING

Dimension References

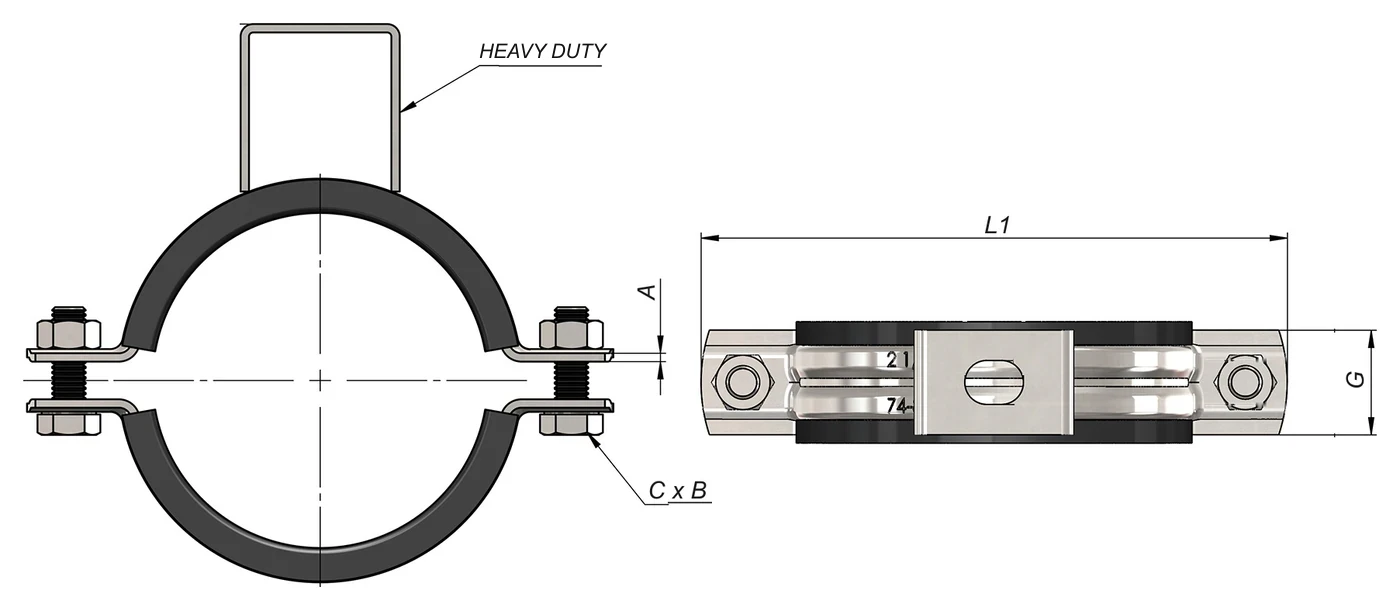

A: sheet thickness · C x B: connecting bolt (diameter x length) · G: band width · L1: total length — the same letters as the columns in the size table.

SIZE TABLE

Available Sizes

Clamping range and other dimensions are in millimetres. Scroll the table sideways to see all columns.

Product Code	Clamping Range	Inch"	C	B	A	G	L1	Qty per Box	Box kg
S-062	20-23	1/2	8	35	2	30	60.5	100	15.45
S-063	25-28	3/4	8	35	2	30	77	100	15.85
S-064	32-35	1	8	35	2	30	77	75	14.75
S-065	40-45	1 1/4	8	35	2	30	83.5	75	13.75
S-066	48-52	1 1/2	8	35	2	30	91	75	14.30
S-067	58-60	2	8	35	2	30	103	60	14.40
S-068	75-80	2 1/2	8	35	2	30	125	50	10.40
S-069	86-91	3	8	35	2	30	153	50	11.20
S-070	110-115	4	8	35	2	30	163	40	12.40
S-071	138-142	5	8	35	2	30	202	30	10.80
S-072	163-167	6	8	35	2	30	243	30	12.00
S-073	216-222	8	8	35	2	30	288	20	14.50
S-074	246-250	10	8	35	2	30	323	10	8.20

APPLICATIONS

Where is it used?

Wall, Ceiling and Floor

Secure fixing to all three surfaces with threaded rod and steel anchor.

Water and Glycol Lines

The rubber is resistant to water, glycol, acids and bases.

Lines with Vibration

EPDM insulating rubber dampens vibration and provides up to 15 dB sound reduction.

Heavy (Thick-Walled) Pipe Installations

Secure fixing of heavy, thick-walled pipelines.

Get a wholesale price quote for heavy-duty clamps with head

Send us the sizes and quantities you need, and our team will get back to you shortly with pricing and delivery information.

+90 212 486 19 90 Send an Email
