Clamp with Nut (Without Rubber)
Clamps without rubber are used for fixing pipes by mounting them to walls, ceilings or floors. Fixing is done with a threaded rod and steel anchor. It has the same body as the clamp with nut, but without insulating rubber. Supplied wholesale in all sizes from 3/8" to 10".
- Rubberless body — for lines that do not require vibration insulation
- Corrosion resistance with 15–20 micron zinc coating
- Quick fixing with threaded rod and steel anchor
- Suitable for wall, ceiling and floor mounting — 18 sizes
Product Information
| Body | Steel body without rubber |
|---|---|
| Coating | 15–20 micron zinc coating |
| Mounting | To wall, ceiling or floor with threaded rod and steel anchor |
| Size Range | 3/8" – 10" — 18 sizes |
| Nut Thread (E) | M8 (3/8" – 2") · M10 (2 1/2" – 10") |
| Sheet Thickness (A) | 1.0 / 1.2 / 1.5 / 2.0 mm (depending on size) |
| Band Width (G) | 20 / 25 mm |

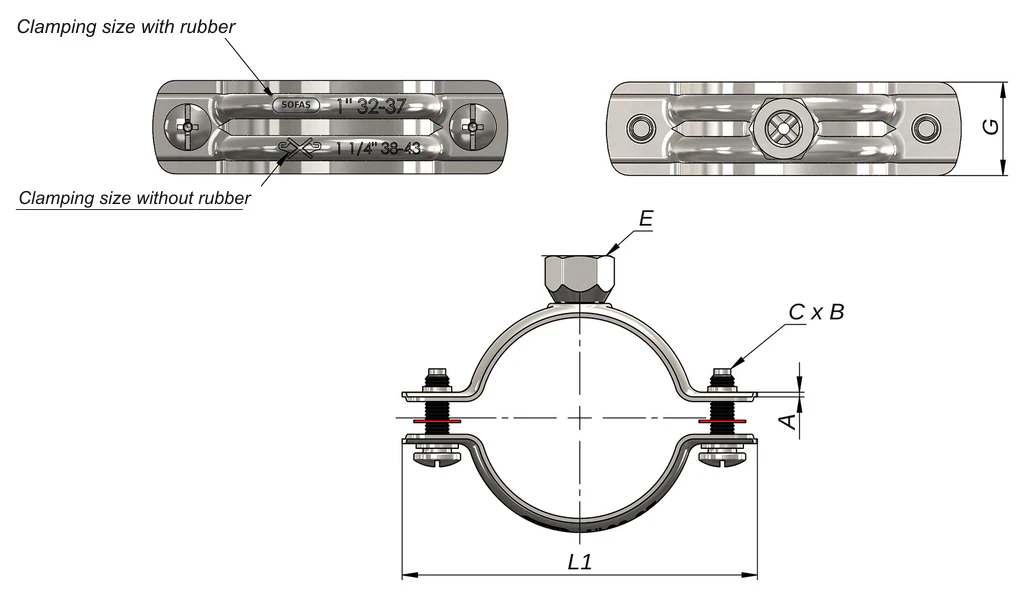

Dimension References
E: nut · C x B: connecting bolt (diameter x length) · A: sheet thickness · G: band width · L1: total length — the same letters as the columns in the size table.
Available Sizes
Clamping range and other dimensions are in millimetres. Scroll the table sideways to see all columns.
| Product Code | Clamping Range | Inch" | E (Nut) | C | B | P | A | G | L1 | Qty per Box | Box kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| — | 14-18 | 3/8 | M8 | 5 | 15 | 8 | 1.0 | 20 | 58.5 | 400 | — |
| — | 20-23 | 1/2 | M8 | 5 | 15 | 8 | 1.0 | 20 | 60.5 | 400 | — |
| — | 25-28 | 3/4 | M8 | 5 | 15 | 8 | 1.0 | 20 | 77 | 300 | — |
| — | 32-35 | 1 | M8 | 5 | 15 | 8 | 1.0 | 20 | 77 | 250 | — |
| — | 40-45 | 1 1/4 | M8 | 5 | 15 | 8 | 1.2 | 20 | 83.5 | 200 | — |
| — | 48-52 | 1 1/2 | M8 | 5 | 15 | 8 | 1.2 | 20 | 91 | 150 | — |
| — | 56-60 | 2 | M8 | 5 | 15 | 8 | 1.2 | 20 | 103 | 100 | — |
| — | 75-80 | 2 1/2 | M10 | 6 | 30 | 10 | 1.5 | 25 | 125 | 150 | — |
| — | 86-91 | 3 | M10 | 6 | 30 | 10 | 1.5 | 25 | 153 | 100 | — |
| — | 97-101 | 3 1/2 | M10 | 6 | 30 | 10 | 1.5 | 25 | 158 | 80 | — |
| — | 100-115 | 4 | M10 | 6 | 30 | 10 | 1.5 | 25 | 163 | 100 | — |
| — | 123-126 | 4 1/2 | M10 | 6 | 30 | 10 | 1.5 | 25 | 183 | 75 | — |
| — | 139-142 | 5 | M10 | 6 | 30 | 10 | 1.5 | 25 | 202 | 60 | — |
| — | 150-165 | 5 1/2 | M10 | 6 | 30 | 10 | 1.5 | 25 | 210 | 55 | — |
| — | 163-167 | 6 | M10 | 6 | 30 | 10 | 2.0 | 25 | 243 | 50 | — |
| — | 195-200 | 7 | M10 | 6 | 30 | 10 | 2.0 | 25 | 265 | 40 | — |
| — | 216-222 | 8 | M10 | 6 | 30 | 10 | 2.0 | 25 | 288 | 35 | — |
| — | 270-276 | 10 | M10 | 6 | 30 | 12 | 2.0 | 25 | 323 | 25 | — |
Where is it used?
Natural Gas Installations
Fixing indoor and outdoor natural gas pipelines to walls.
Plumbing
Quiet and secure mounting on clean water and wastewater lines.
Heating & Boiler Lines
Secure fixing in radiator and combi boiler connections.
Industrial Facilities
Suitable for intensive use on factory and industrial lines.
Get a wholesale price quote for clamps with nut without rubber
Send us the sizes and quantities you need, and our team will get back to you shortly with pricing and delivery information.
