Clamp with Long Wood Screw
Clamps with long wood screw are used for fixing pipes by mounting them to walls, ceilings or floors. The 7x100 mm long wood screw provides a deeper hold. M10 plastic wall plugs must be used for installation. The insulating rubber dampens vibration in the system and provides a sound reduction of up to 15 dB. Supplied wholesale in 15 sizes from 3/8" to 6".
- Deep, secure hold with a 7x100 mm long wood screw
- Up to 15 dB sound reduction with insulating rubber
- Corrosion resistance with 8–10 micron zinc coating
- Special rubber meeting DIN 53509 requirements
Product Information
| Coating | 8–10 micron zinc coating |
|---|---|
| Gasket Material | Insulating rubber |
| Rubber Resistance | Meets DIN 53509 requirements |
| Sound Reduction | Up to 15 dB |
| Mounting | To wall, ceiling or floor with a wood screw |
| Wall Plug | M10 plastic wall plug must be used |
| Chemical Resistance | Resistant to water, glycols, acids and bases |
| Size Range | 3/8" – 6" — 15 sizes |
| Wood Screw (P) | 7 x 100 mm (all sizes) |
| Sheet Thickness (A) | 1.0 / 1.2 / 1.5 mm (depending on size) |
| Band Width (G) | 20 / 25 mm |

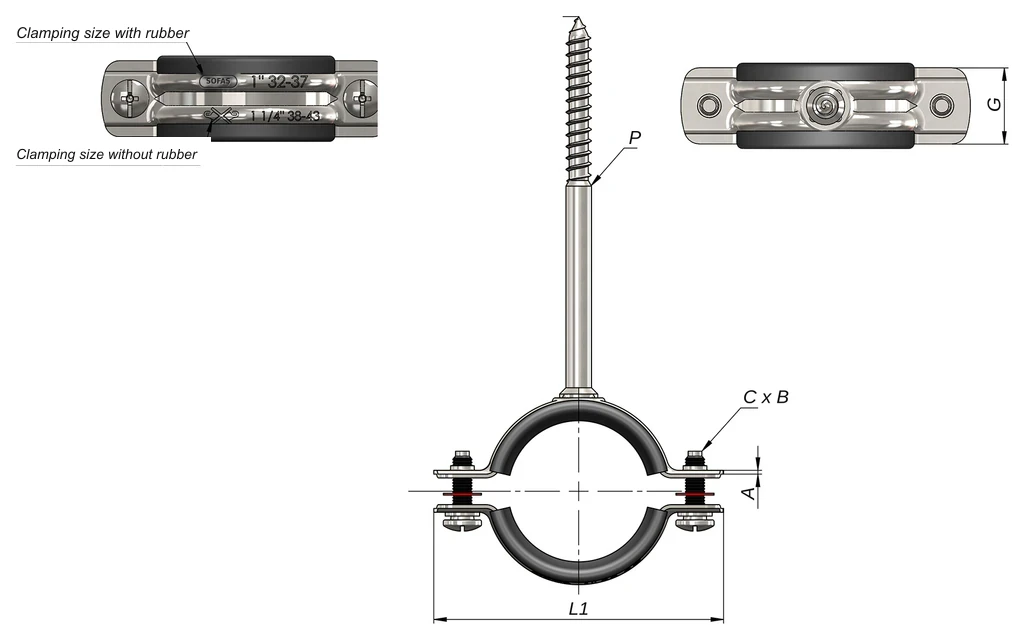

Dimension References
P: wood screw · C x B: connecting bolt (diameter x length) · A: sheet thickness · G: band width · L1: total length — the same letters as the columns in the size table.
Available Sizes
Clamping range and other dimensions are in millimetres. Scroll the table sideways to see all columns.
| Product Code | Clamping Range | Inch" | C | B | P (Wood Screw) | A | G | L1 | Qty per Box | Box kg |
|---|---|---|---|---|---|---|---|---|---|---|
| S-034 | 14-18 | 3/8 | 5 | 15 | 7x100 | 1.0 | 20 | 58.5 | 300 | — |
| S-035 | 20-23 | 1/2 | 5 | 15 | 7x100 | 1.0 | 20 | 60.5 | 250 | — |
| S-036 | 25-28 | 3/4 | 5 | 15 | 7x100 | 1.0 | 20 | 77 | 200 | — |
| S-037 | 32-35 | 1 | 5 | 15 | 7x100 | 1.0 | 20 | 77 | 180 | — |
| S-038 | 40-45 | 1 1/4 | 5 | 15 | 7x100 | 1.2 | 20 | 83.5 | 130 | — |
| S-039 | 48-52 | 1 1/2 | 5 | 15 | 7x100 | 1.2 | 20 | 91 | 100 | — |
| S-040 | 56-60 | 2 | 5 | 15 | 7x100 | 1.2 | 20 | 103 | 90 | — |
| S-041 | 75-80 | 2 1/2 | 6 | 30 | 7x100 | 1.5 | 25 | 125 | 75 | — |
| S-042 | 86-91 | 3 | 6 | 30 | 7x100 | 1.5 | 25 | 153 | 60 | — |
| S-043 | 97-101 | 3 1/2 | 6 | 30 | 7x100 | 1.5 | 25 | 158 | 60 | — |
| S-044 | 100-115 | 4 | 6 | 30 | 7x100 | 1.5 | 25 | 163 | 50 | — |
| S-045 | 123-126 | 4 1/2 | 6 | 30 | 7x100 | 1.5 | 25 | 183 | 40 | — |
| S-046 | 138-142 | 5 | 6 | 30 | 7x100 | 1.5 | 25 | 202 | 35 | — |
| S-047 | 160-165 | 5 1/2 | 6 | 30 | 7x100 | 1.5 | 25 | 210 | 30 | — |
| S-048 | 163-167 | 6 | 6 | 30 | 7x100 | 1.5 | 25 | 243 | 25 | — |
Where is it used?
Natural Gas Installations
Fixing indoor and outdoor natural gas pipelines to walls.
Plumbing
Quiet and secure mounting on clean water and wastewater lines.
Heating & Boiler Lines
Accommodates thermal expansion in radiator and combi boiler connections.
Industrial Facilities
Suitable for intensive use on factory and industrial lines.
